Self-watering and bottom for PVC raised bed 50x120x240 cm (25 cm soil)

Model/Product no.: FC6901

Delivery time is 1 - 5 workdays.

784,79 EUR

Antal:

In stock

With this product you can get up to 25 cm of soil to cultivate using our bottom and GrowWater system! The base plate for the raised bed in PVC with 50 cm frame height hangs approx. 40 cm down in the bed from the upper edge. The base comes with fittings, which are placed in the groove at the top of the PVC plank and angle iron rails, which carry the base plate, which is made of plastic double bottom with slats. The GrowWater system comes with a durable plastic plate that keeps...

Read more

With this product you can get up to 25 cm of soil to cultivate using our bottom and GrowWater system!

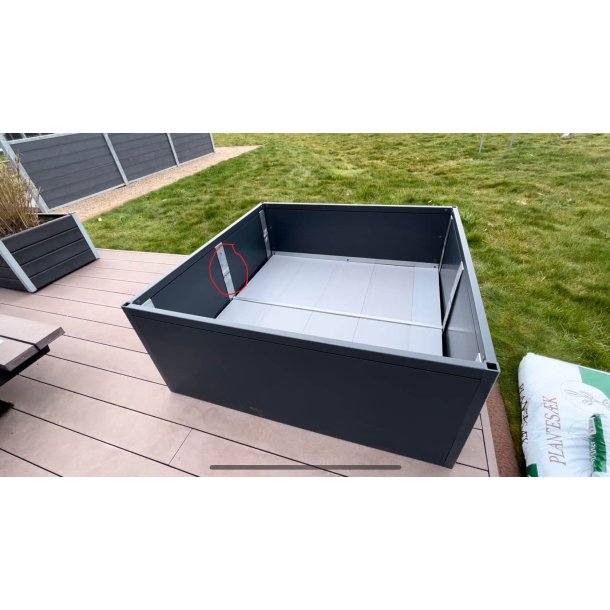

The base plate for the raised bed in PVC with 50 cm frame height hangs approx. 40 cm down in the bed from the upper edge. The base comes with fittings, which are placed in the groove at the top of the PVC plank and angle iron rails, which carry the base plate, which is made of plastic double bottom with slats. The GrowWater system comes with a durable plastic plate that keeps the soil from getting into the sturdy plastic bag in which the water is. In addition, capillary tubes, nuts, irrigation connection, water level regulator and a flamingo water indicator are included.

Please note that the possibility of using the water level regulator (FC2275) is more limited due to the clear plastic extension pipe mounted on the irrigation connection.

NB: The bottom does not cause the bed to be waterproof.

Details about the GrowWater System

GrowWater is a patented watering system, developed by GrowCamp.

Water tank
The water container is 15 cm high and holds 145 liters of water. It is placed as an insert at the bottom of the bed. Above ground is connected to the water through perforated pipes, which act as wicks. The wicks sucks up the water and the humidity spreads out in the entire bed.

Soil
There is room for 25 cm of soil above the water container.

Bottom
The water is pressed by a strong plastic bag with the drain hose. The wicks supports plastic bag and carries the bottom that the earth is on. It is therefore important that the substrate on the bottom of the bed is firm, smooth and without sharp edges and articles that could damage the plastic bag where the wicks supports. It is therefore recommended that there be a plastic plate, tiles or planed boards at the bottom of the bed.

Adjustable water level
The irrigation system is equipped with a patented device that makes it possible to lower the water level to prevent the plants get too wet in cool growing seasons or during the establishment phase, where the root system is not yet developed completely. As you know, not thriving plants both too little and too much water. It is recommended that you only fill the water tank half until the plants have formed a good root system. Otherwise, the soil tends to be wet - of course especially during periods of heavy rainfall. However, there is much difference between the different types of soil's ability to absorb water, so you have to try them.

Water filling

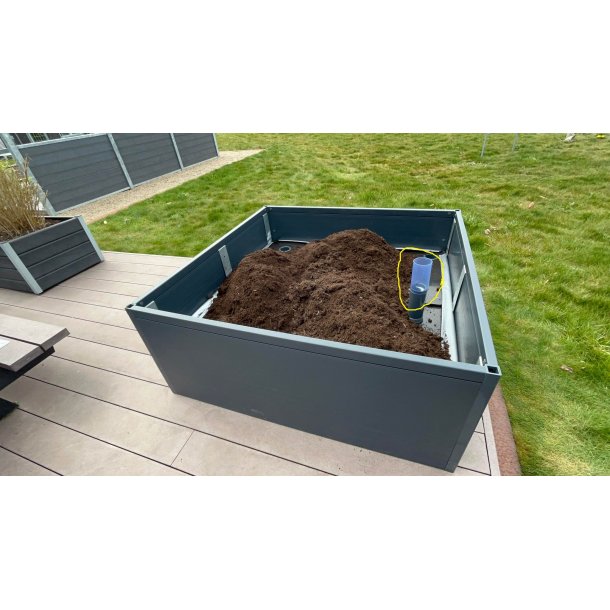

Water filling is done quickly and easily via a large feeding tube, which is provided with water level indicator.


Quality Product
The entire irrigation system is made of robust plastic parts that can be easily washed and used year after year.




Installation
See instructions GROWWATER
See instructions CABIN

See More

- on irrigation here!

Lenght 240 cm (2 x 120 cm)
Width 120 cm
Plant depth 25 cm
FC6695FC6696-med-FC2106.pdf-1.pdf
FC6850_MONTAGE.pdf
FC6890_MONTAGE.pdf
